Insulated Buildings

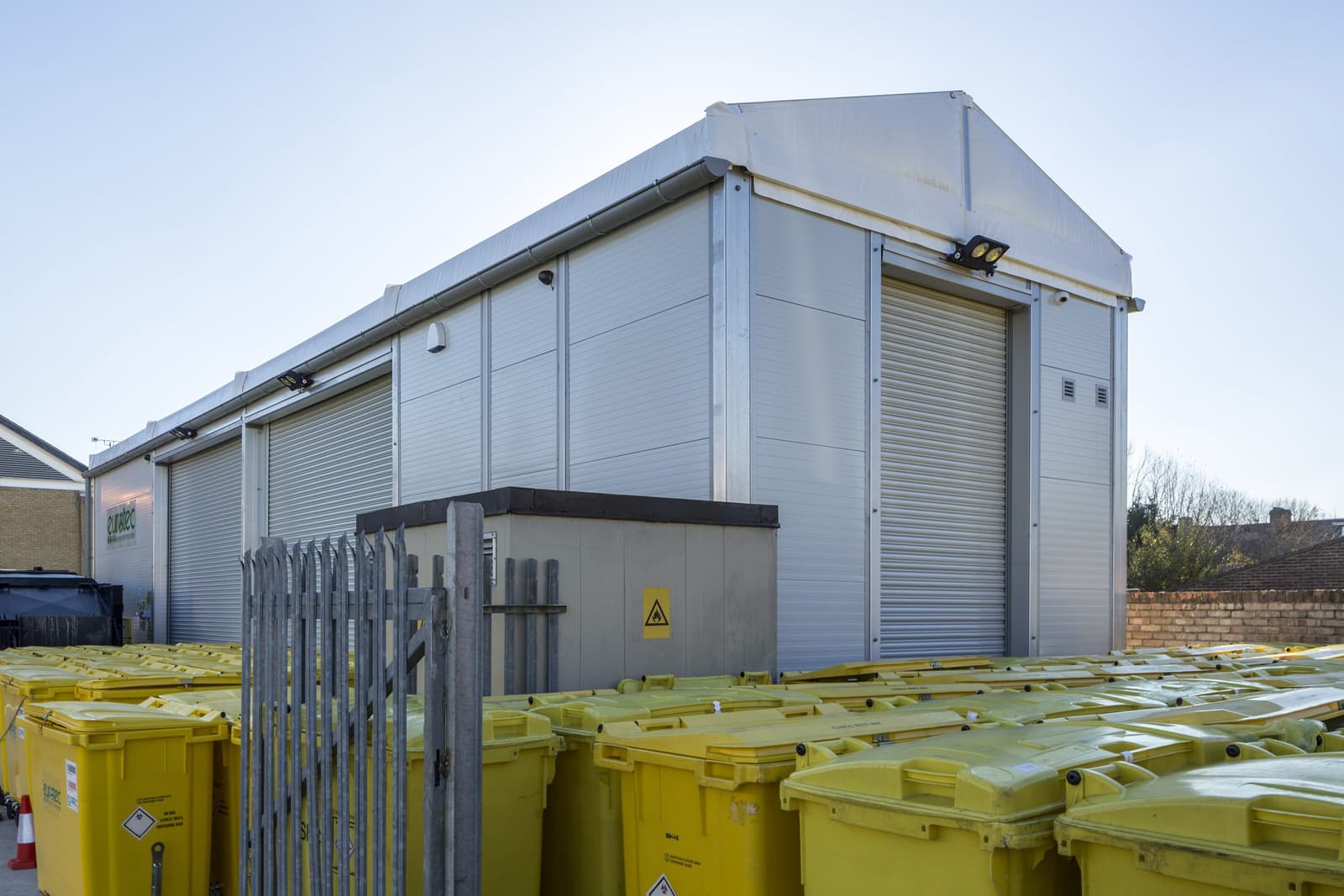

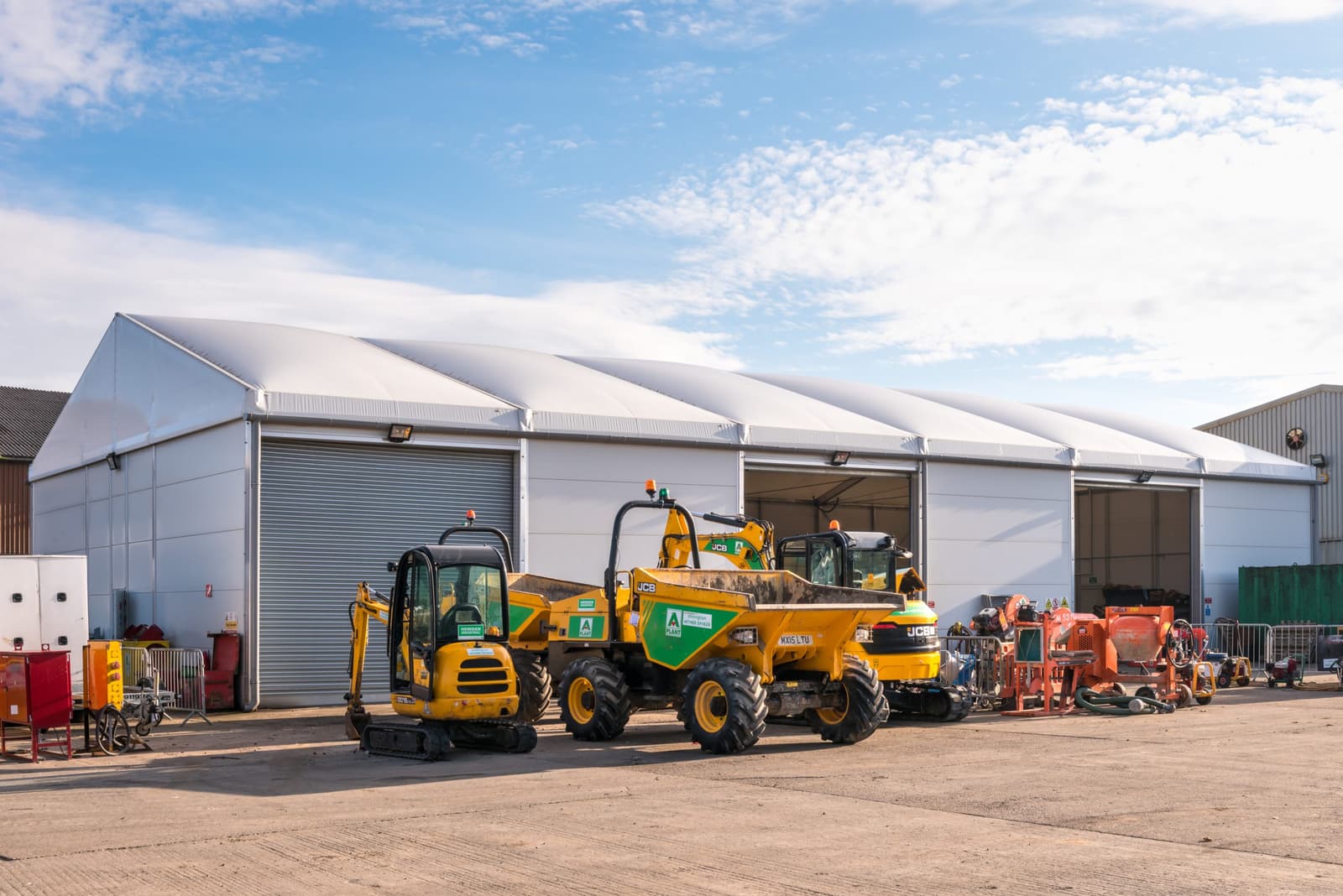

Thermo insulated temporary buildings are suitable for warehousing or operational areas and are the ideal choice for storage of temperature sensitive products. Suitable for a range of applications. Extendable in 5m increments.
Configure productDetails

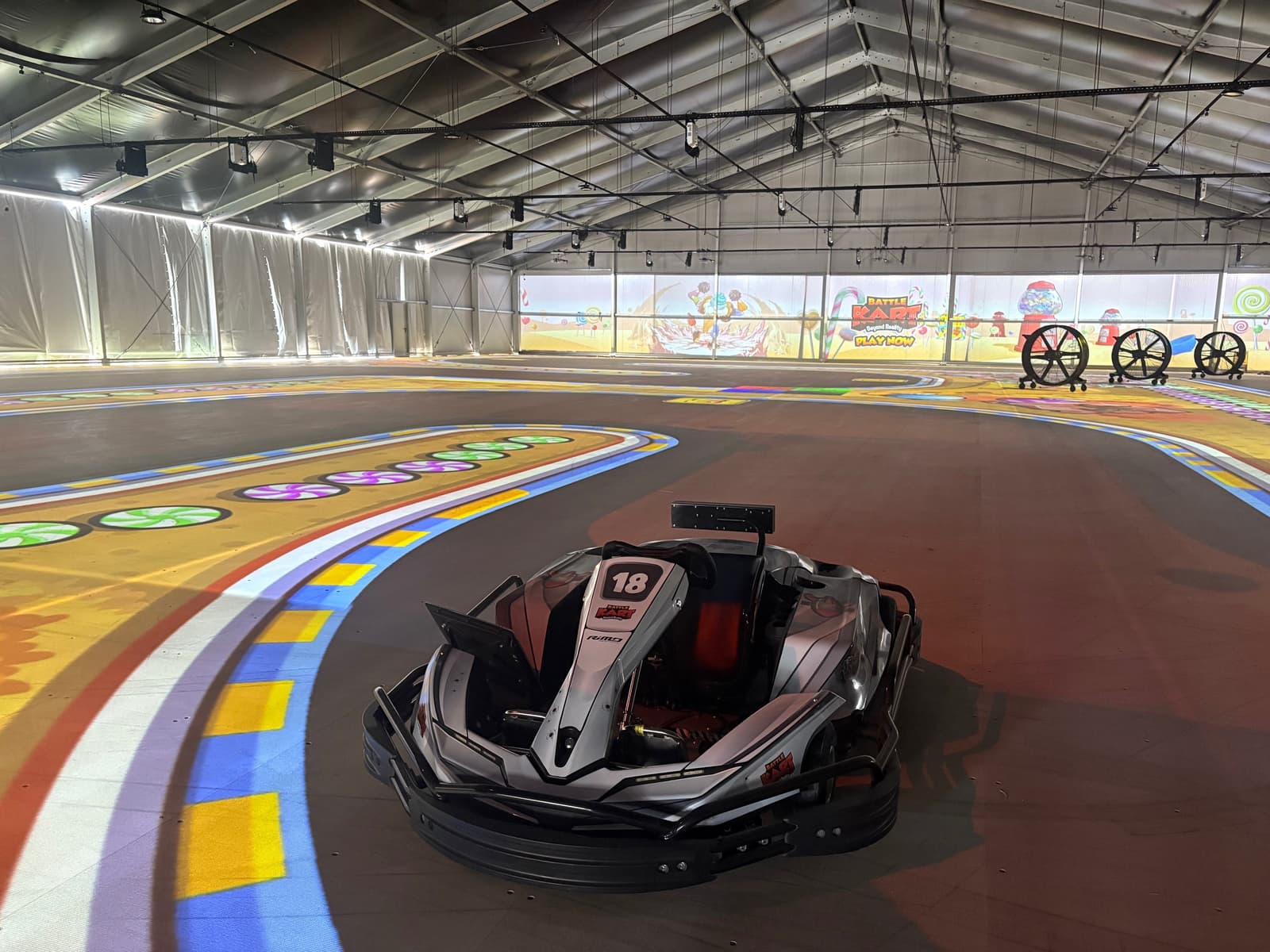

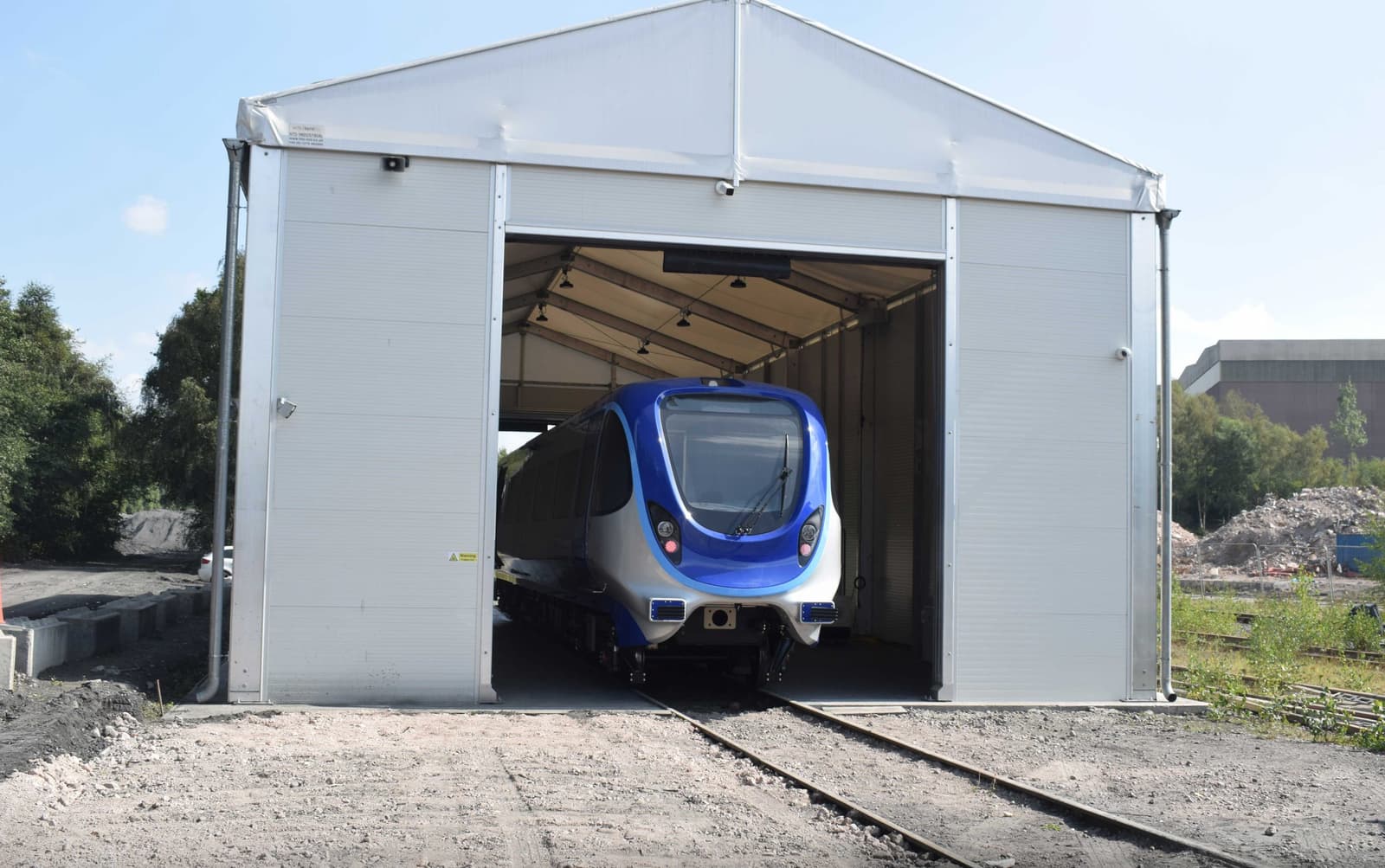

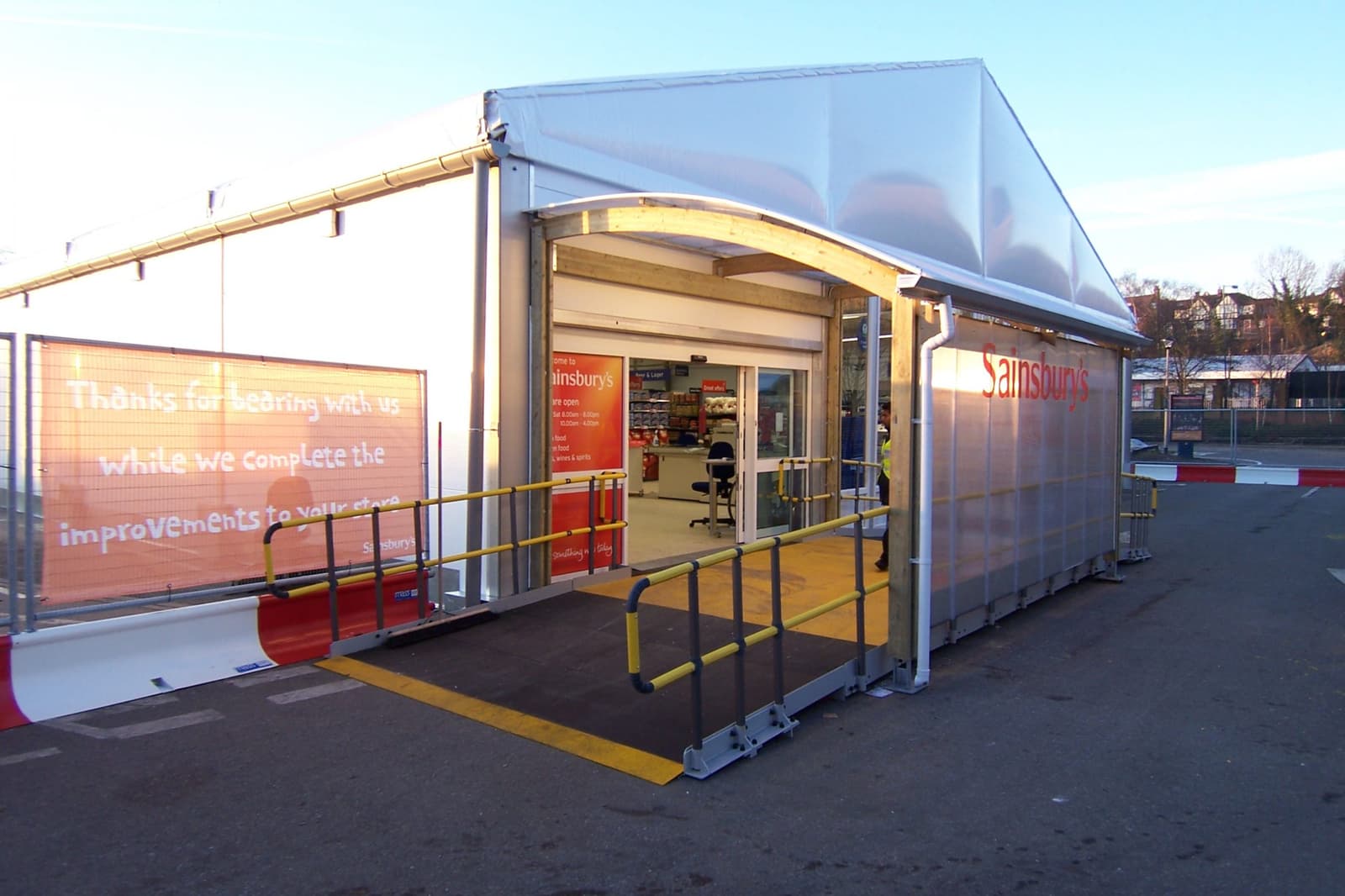

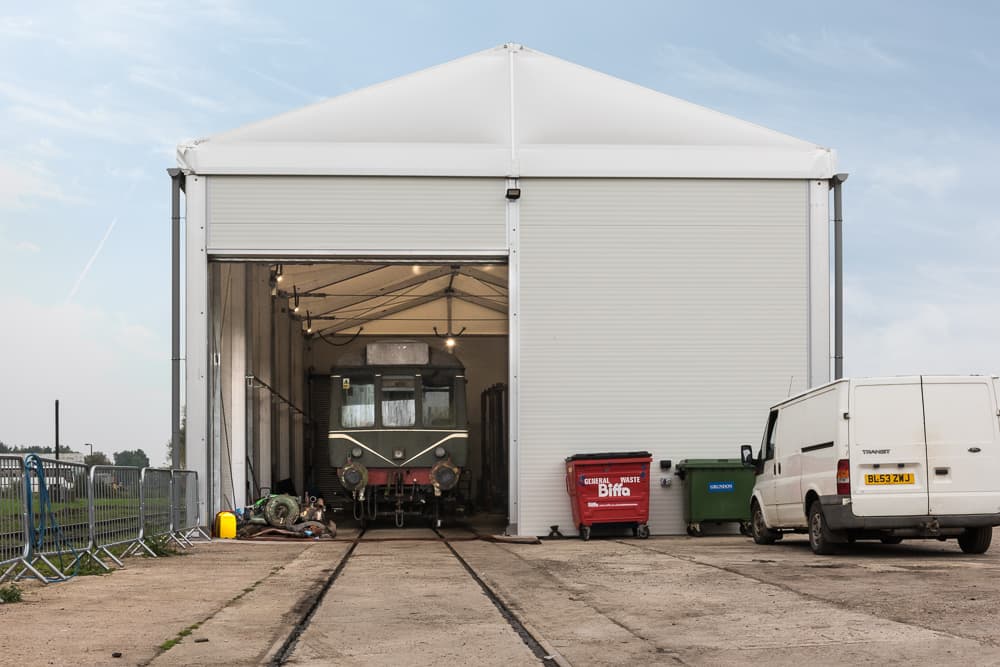

HTS TENTIQ thermo insulated temporary warehouse buildings are the ideal choice for sensitive storage, portable warehouse requirements or workshop buildings and public facilities such as supermarkets or leisure buildings. The thermo roof features a double-layered inflatable roof system engineered from industrial grade PVC fabric. Once inflated it minimises condensation, helps temperature control and reduces any structural noise, making our insulated temporary buildings ideal for goods or equipment that require protection from condensation or low temperatures. Their excellent insulation properties, functionality and durability make them an attractive alternative to more traditional permanent warehouses or industrial buildings.
from HTS The excellent insulation properties, functionality, durability and look of our insulated temporary buildings make them an attractive alternative to traditional more-permanent warehouses or industrial buildings.
Standard insulated temporary warehouses range in width from 5.00m – 30.00m, with lengths that are unlimited in 5.00m increments and wall heights from 4.20m to 6.20m. A wind load of 0.5 kN/m² (=102 km/h) and a snow load of 1.5 kN/m² (=100 kg) are achievable. Custom sizes and designs as well as higher wind and snow loads are available upon request.
Standard warehouses have a typical installation time of just 7-8 days and are compliant with local building codes.
HTS TENTIQ provides a range of rental and purchase options.
Customize Insulated Buildings
To generate a data sheet, please first select the span width and eave height and then click on the download button.
Main Components
Frame
The frame for our insulated temporary buildings is manufactured by HTS TENTIQ in Germany from a combination of high grade anodised aluminium and corrosive resistant galvanised steel for the connecting parts.
Roof Covers
Two different options are available for the roof covering: double layer thermo roof, insulated for temperature control and to minimise condensation; sandwich panels available in different thicknesses with a high U-value for better insulation.
Side Walls

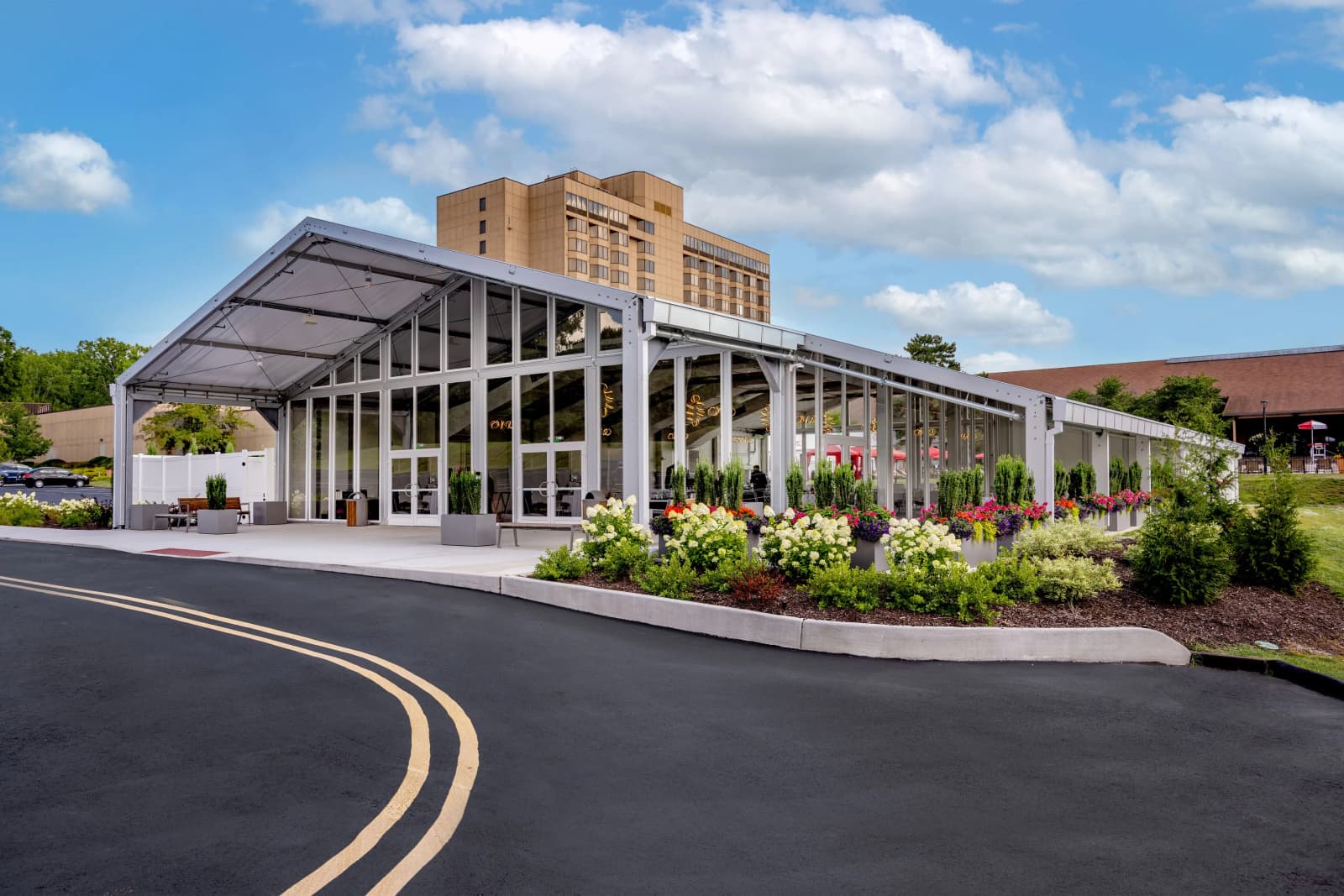

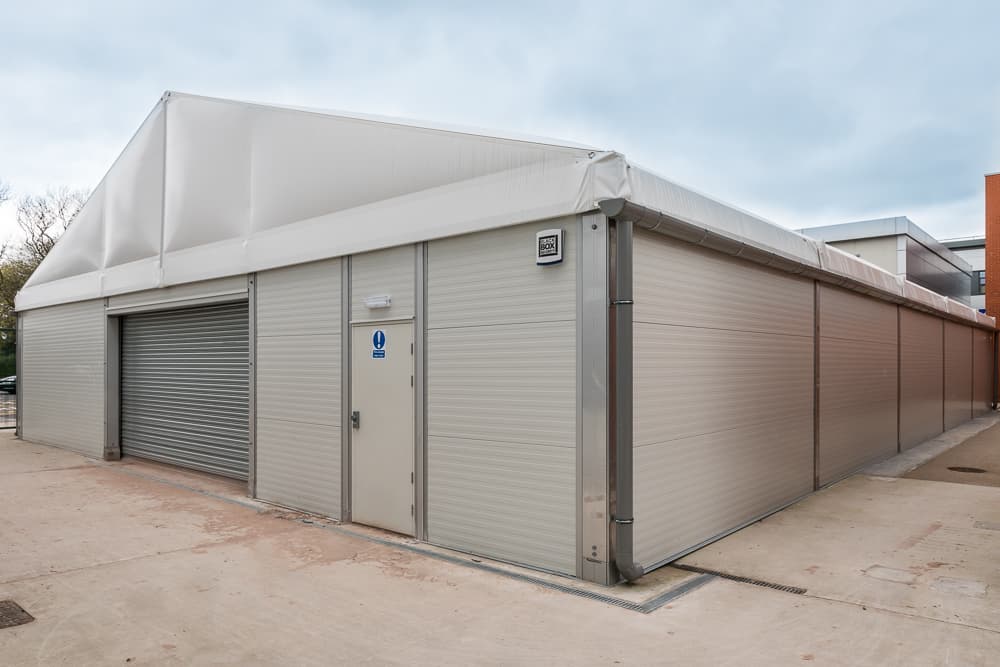

Side walls are available as insulated sandwich panels (40mm, 60mm, 80mm and 100mm thicknesses) or glass walling.
